The steel wire is made of high-quality carbon steel and can achieve high strength after multiple cold drawing and heat treatments. Steel wire ropes twisted with galvanized steel wire can be used in damp or outdoor environments to enhance rust resistance. Steel wire ropes are standard products in various industrial countries, and their diameter, number of strands, number of steel wires per strand, tensile strength, and sufficient safety factor can be selected according to their usage needs. Their specifications and models can be found in relevant manuals. In addition to the wear of the outer steel wire, the steel wire rope gradually breaks due to metal fatigue caused by repeated bending around the pulley and drum. Therefore, the ratio of the diameter of the pulley or drum to the diameter of the steel wire rope is an important factor determining the service life of the steel wire rope. The ratio is large, the bending stress of the steel wire is small, the service life is long, but the mechanism is huge. The appropriate ratio must be determined based on the usage situation. When the wear and corrosion degree of the surface layer of the steel wire rope or the number of broken wires within each twist exceeds the specified value, it should be scrapped. Steel wire ropes are mainly used in transportation that requires high-strength wire ropes, such as lifting and pulling.

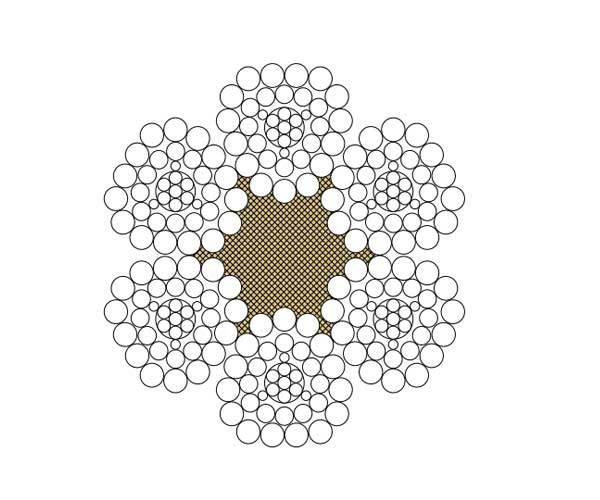

Steel Wire Rope 6X26WS+FC、6X26WS+IWR
Steel Wire Rope 6X26WS+FC、6X26WS+IWR

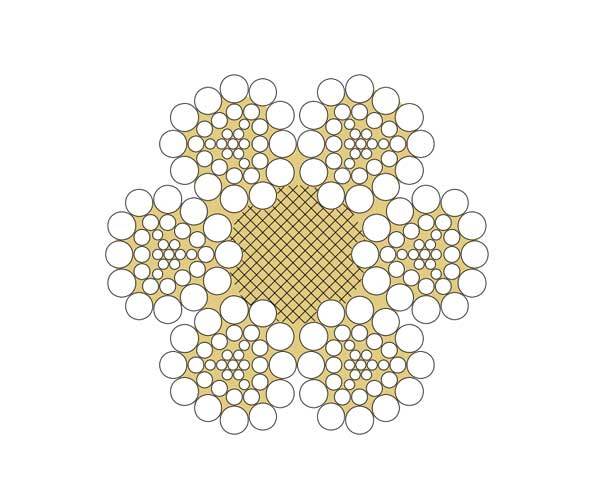

Steel Wire Rope 6VX37S+FC、6VX37S+IWR
Steel Wire Rope 6VX37S+FC、6VX37S+IWR
Wire rope structure: 6x36WS+FC, 6x36W+IWR strand structure: (1+7+7/7+14) Steel wire rope structure: 636W+FC, 636W+IWR strand structure: (1+7+7/7+14) Steel wire rope section diagram: diameter, mm approximate weight of steel wire rope, kg/100m nominal tensile strength MPa 0 Steel wire rope natural fiber core synthetic fiber core steel core center first layer second layer third

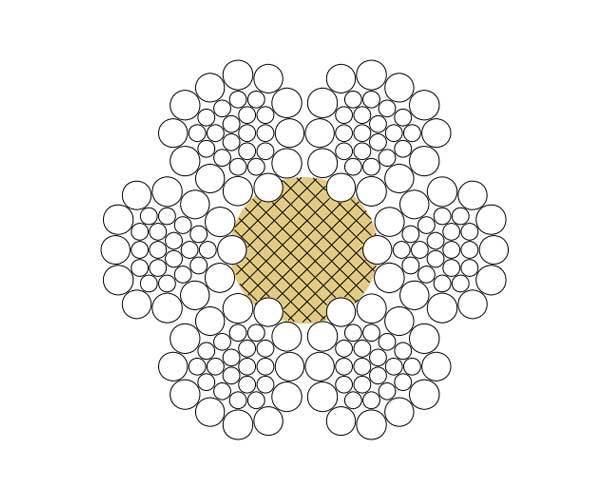

Steel Wire Rope 6VX34+FC、6VX37+FC、6VX34+IWR、6VX37+IWR
Steel Wire Rope 6VX34+FC、6VX37+FC、6VX34+IWR、6VX37+IWR
Steel Wire Rope 6VX30+FC、6VX30+IWR
Steel Wire Rope 6VX30+FC、6VX30+IWR
Steel Wire Rope 8x19s Steel wire rope structure 8*19S+NF, steel wire rope specification 13mm, if it is the elevator rope must be executed the elevator rope standard GB8903-2005, if it is a mechanical rope, it is necessary to perform the general purpose steel wire rope standard GB/T20118-2006 or the national standard GB8918-2006 for important purpose steel wire rope

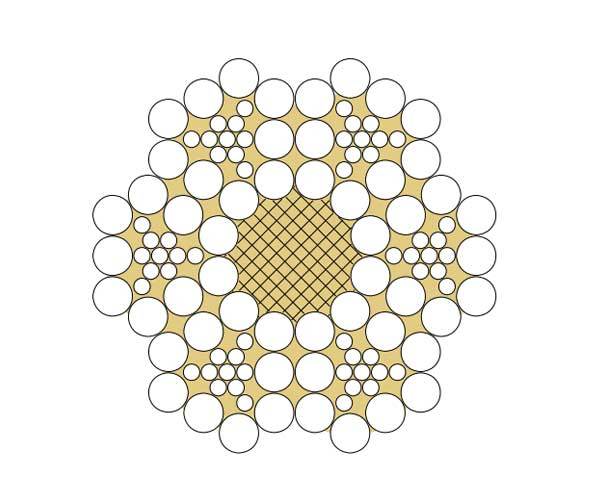

Steel Wire Rope 6VX19+FC、6VX19+IWR
Steel Wire Rope 6VX19+FC、6VX19+IWR

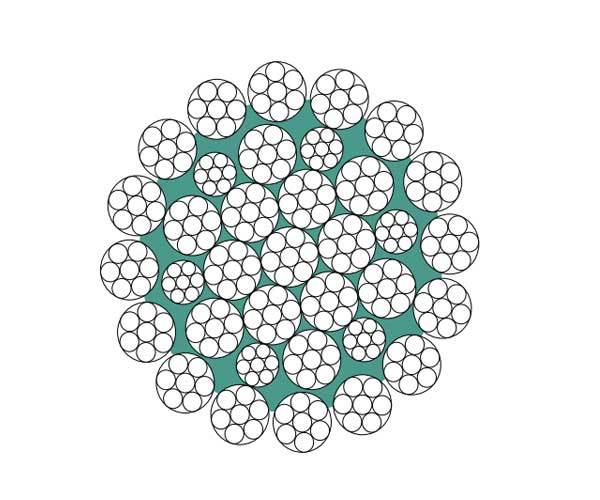

Steel Wire Rope 35WxK7 35W*K7 Rotation Resistant Compacted Wire Rope Structure: 35W*K7 rotation resistant compacted wire rope Type: surface contact non-rotating wire rope Scope of application: can be used in high intensity workload, safety and reliability requirements of high occasions, such as offshore oil
Steel Wire Rope 35WX7

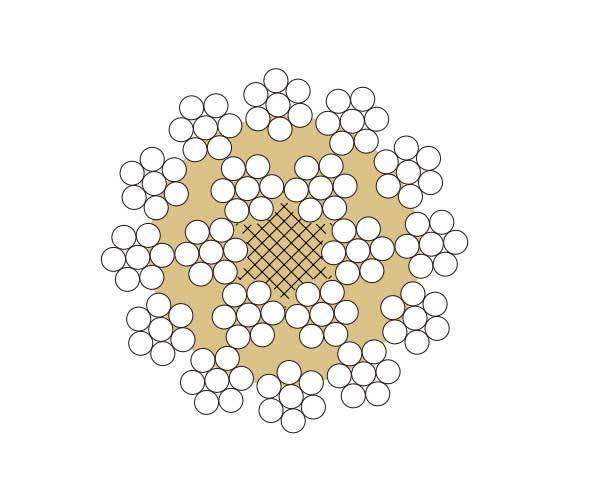

Steel Wire Rope 18X7+FC、18X7+IWS、18X19+FC、18X19+IWS
Steel Wire Rope 18X7+FC、18X7+IWS、18X19+FC、18X19+IWS
Steel Wire Rope 6x29FI Advantages: good wear resistance, good extrusion resistance, good stability breaking tension is higher than fiber core steel wire rope can be customized according to user requirements. Application: drilling rope for well repair rope Wire rope 6*29Fi,6*25Fi, 6*26SW,6*31SW,6*36SW,6*37S Structure: 6*25Fi+FC 6*25Fi+IWR 6*26SW+FC6*26SW+IWR 6*29Fi+FC 6*29Fi+IWR 6*31SW+FC 6*31SW+IWR 6*36SW+FC 6*36SW+IWR 6*37S+FC 6*41SW+FC 6*37S+IWR 6*41SW+IWR 6*49SWS+FC 6*49SWS+IWR Wire rope 6*29Fi,6* 25Fi,6* 26SW,6* 31SW,6* 36SW,6*37S Uses: All kinds of lifting, lifting and traction equipment, metal rope core is suitable for load, heat and extrusion conditions, such as: shovel, crane, pile foundation engineering
